91R™ Plank Glass & Metal Systems

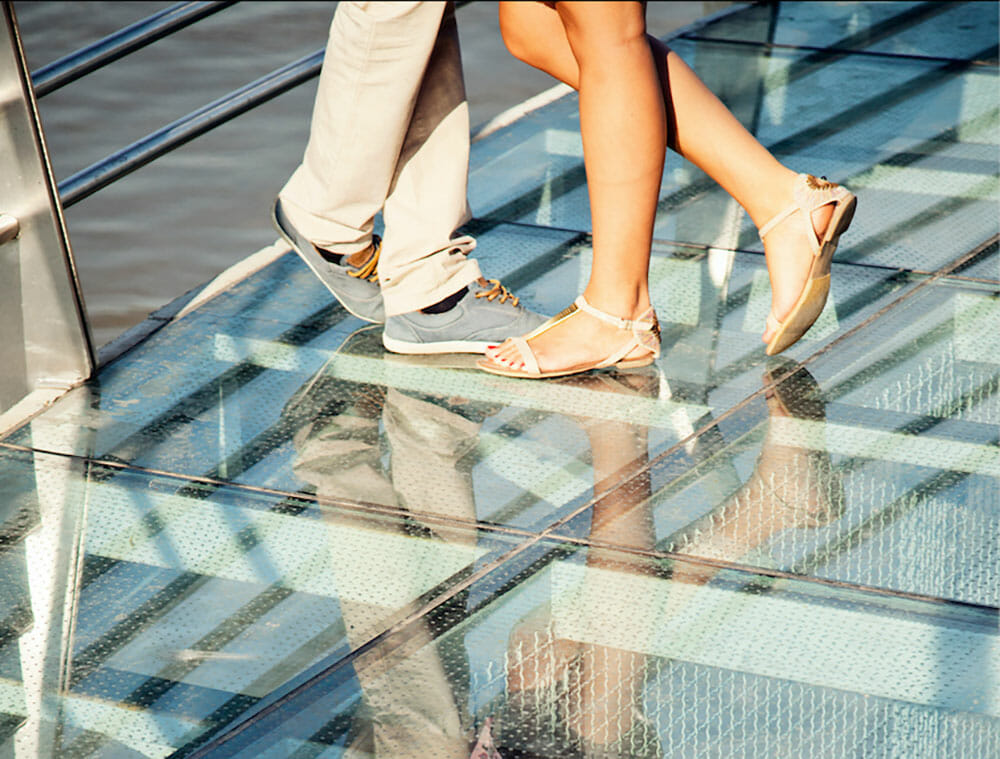

If you want to add drama and contemporary appeal to your next project, a structural glass floor, a sweeping stairway with glass stair treads, or a walkable glass bridge are great ways to achieve this. Circle Redmont’s glass flooring products are visually stunning, highly durable, and allow a beautiful, multidirectional flow of light to stream through a space.

Choose drama and brilliant illumination in your next glass floor project by specifying Circle Redmont’s Plank Glass & Metal Systems in your next structural glass floor.

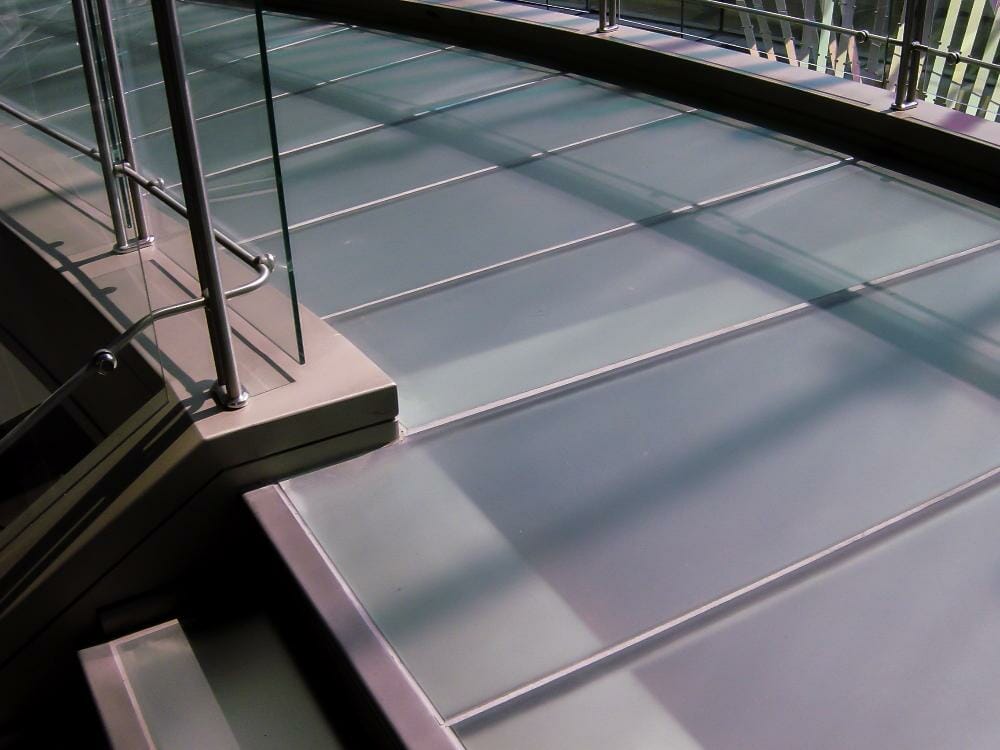

Architects and designers love our 91R glass flooring panels. The beauty of the 91R system lies in its flexibility. Each system–including the framework and glass planks–is created to project specifications. We custom-fabricate each unit to fit flush with any floor opening. For this reason, you can span any area, no matter how unique its shape or size.

Because Circle Redmont provides design assistance, we take the risk out of specifying our structural glass floors. Engineered drawings will ship along with the grid, spanning members, and glass panels for easy installation and a perfect fit.

The system begins with a thoughtfully engineered and rigorously tested steel frame that supports our composite laminated glass flooring panels. Our framing system supports longer planks without additional structural support for a cleaner, more contemporary aesthetic.

We finish the The 91R™ system’s steel frames with a 2-part epoxy prime urethane high-gloss topcoat. Stainless steel panels feature a non-directional bead blast finish. Other paint colors and stainless steel finishes are available.

The glass flooring panels for the 91R™ system are single-sourced, engineered, and factory prefabricated. Choose from standard glass with a beautiful, contemporary green/blue tint or low-iron, nearly-colorless glass. Circle Redmont can fabricate the 91R™ panels to be fully transparent, fully translucent, or anything in between. Moreover, we can achieve a customized look with an optional colored interlayer in the walkable glass floor. Circle Redmont can also add digital printing or silk screening or LED lighting to 91R™ treads for a truly unique effect.

Optional safety features include ceramic frits, acid etching, or sandblasting, so 91R™ can be used indoors or out. Acid etching also eliminates privacy concerns associated with glass flooring panels while allowing light to stream through the system.

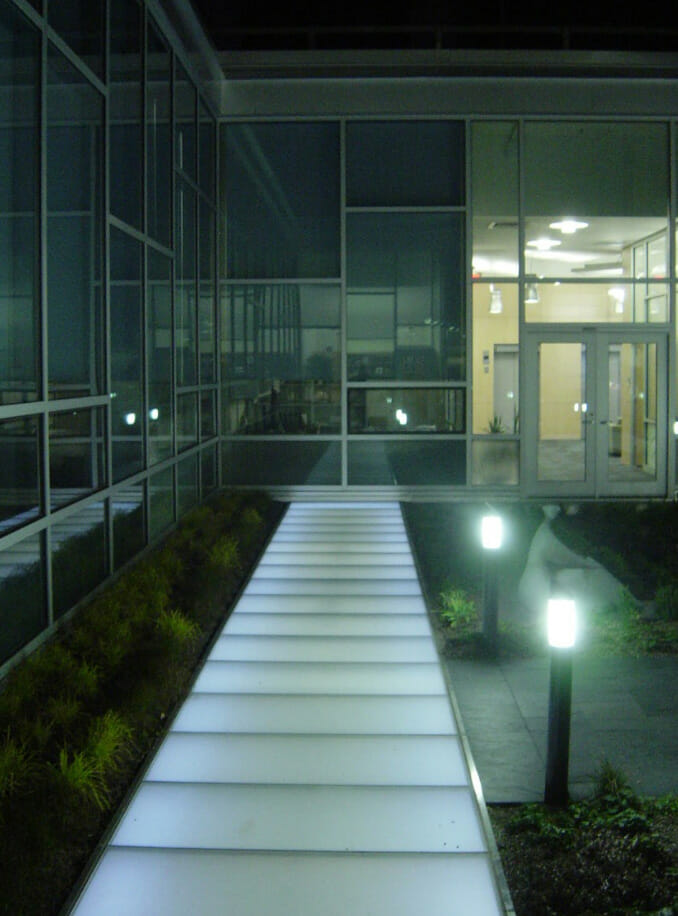

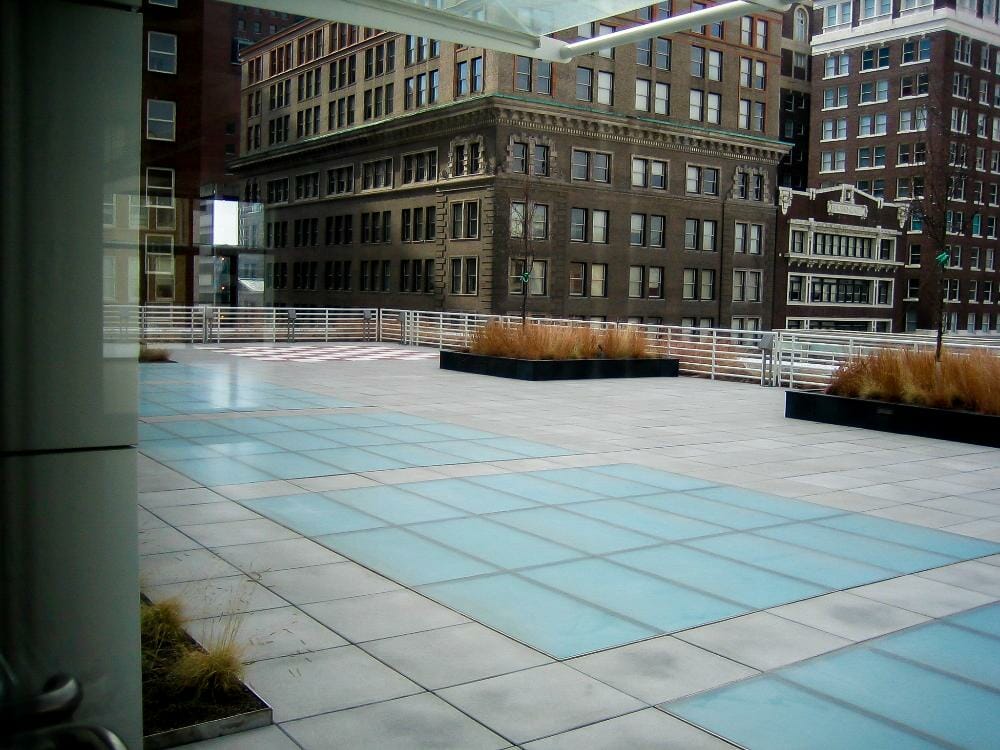

Our proprietary glass contains waterproof composite materials and has been extensively tested. It is a proven winner for interior and exterior applications. Use the 91R™  to incorporate long spans of uninterrupted glass without additional structural supports.

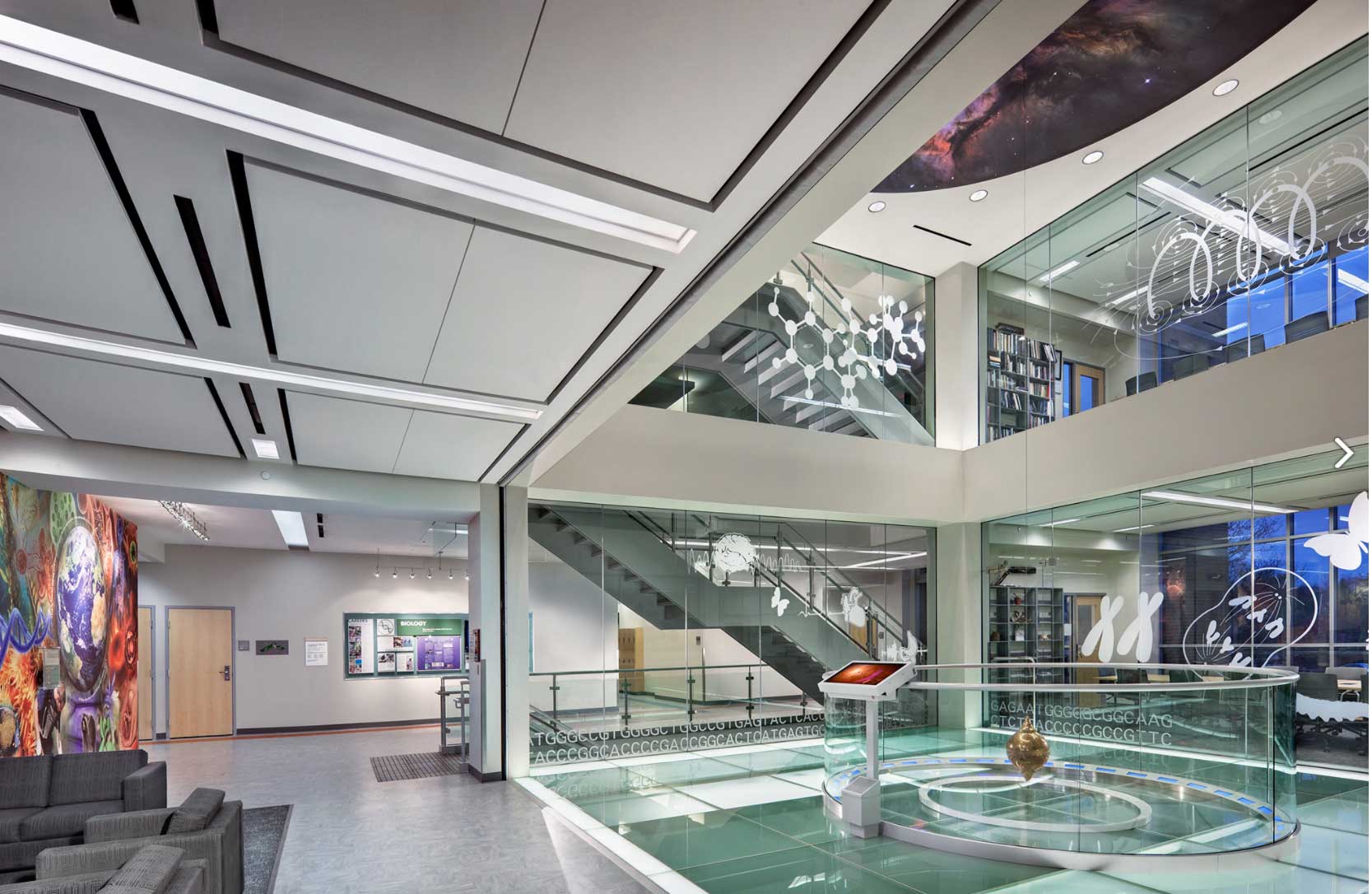

The 91R structural glass floor system is durable enough for nearly any commercial application, including offices, retail spaces, hospitality (hotels, restaurants, and resorts), healthcare facilities, and public spaces, including museums, government buildings, and mass transit stations. The planks are also suitable and beautiful in contemporary residential settings.

91R™ is the solution where historic features must be conserved. Our system allows you to display and preserve history beneath your feet. 91R™ not only protects history but can help create a focal point in your design.

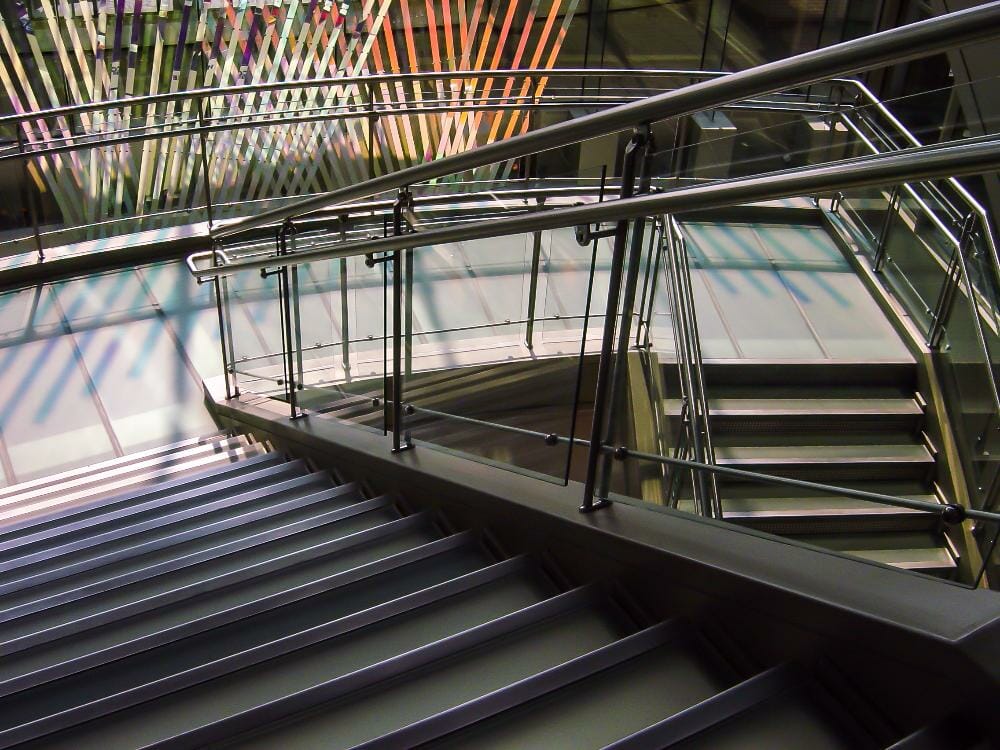

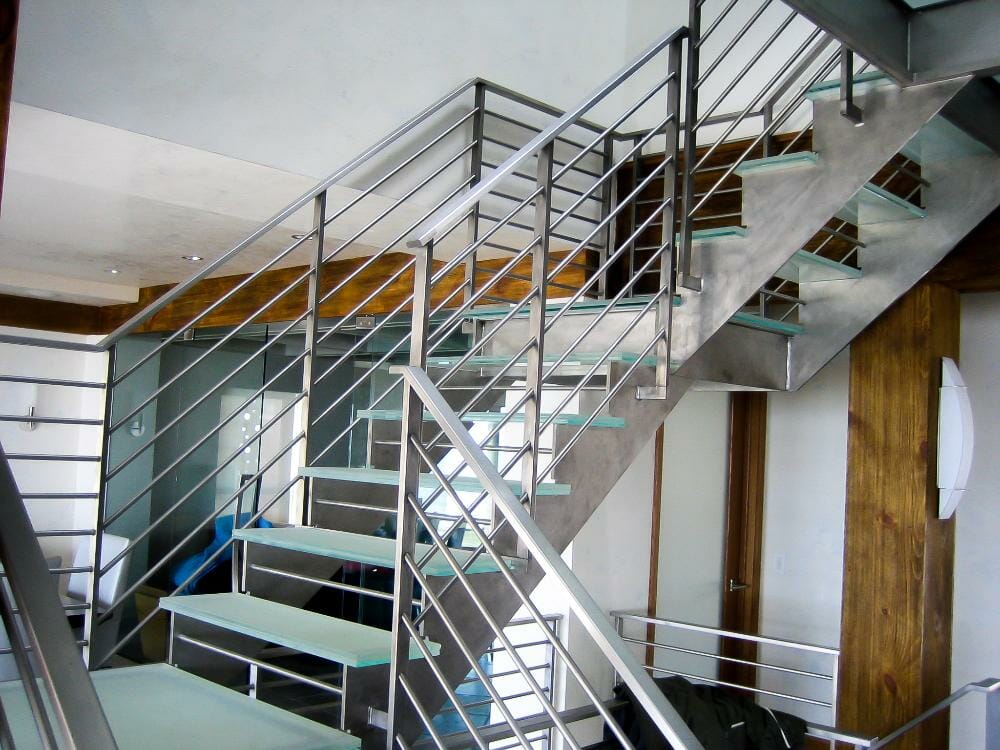

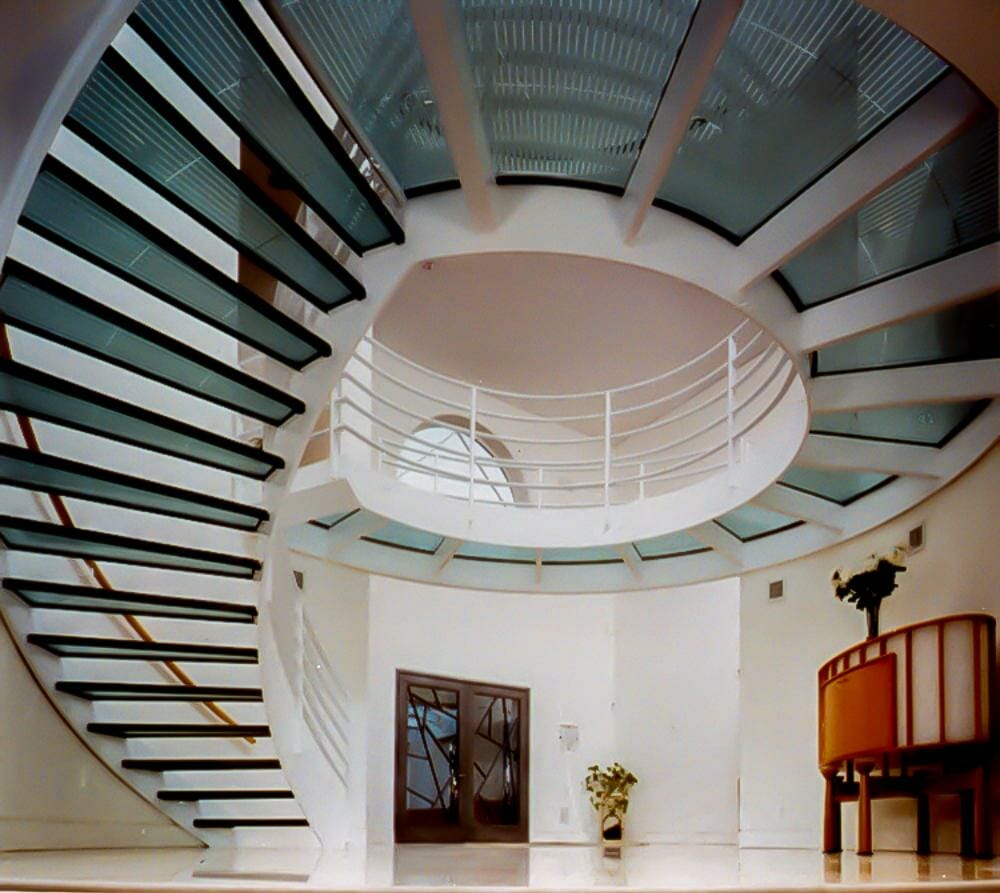

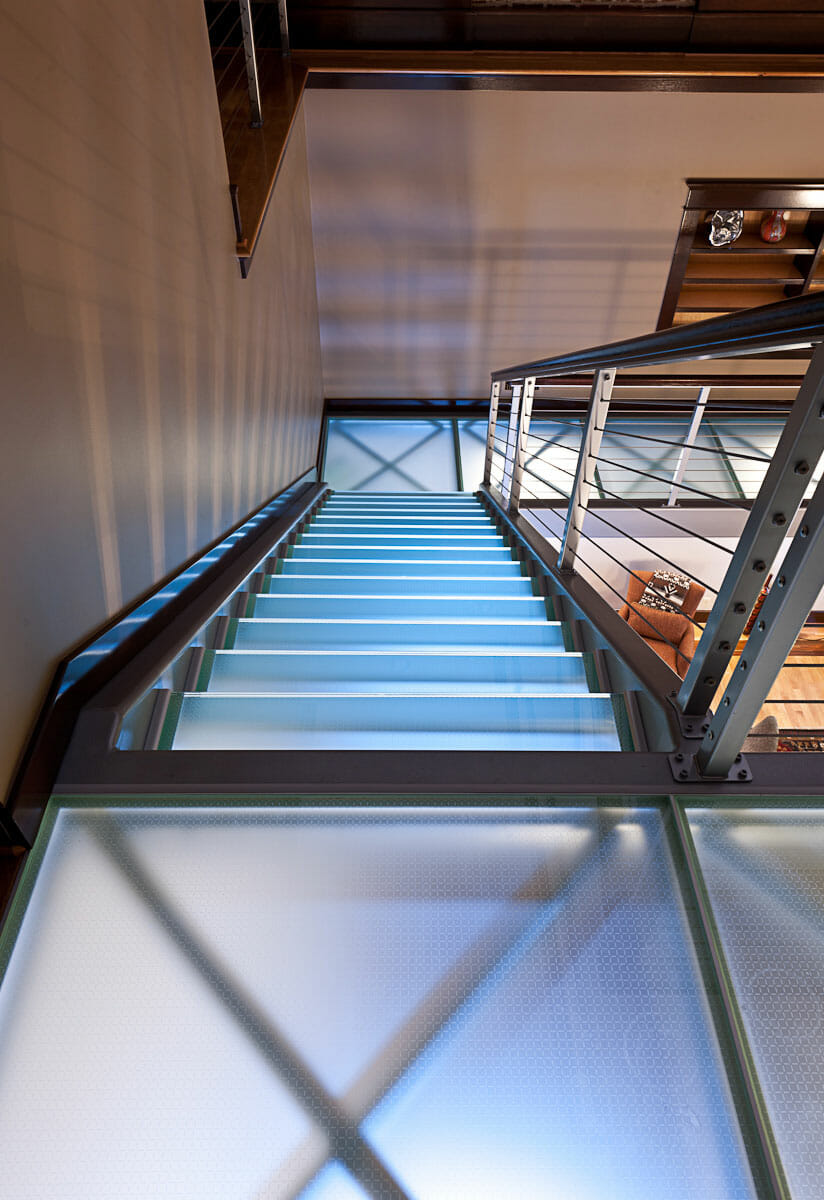

Ready to add some “wow” factor to your next staircase project? Take your stairs to the next level by infusing them with light using Circle Redmont 91R™ light penetrating glass flooring. Circle Redmont fabricates the stair tread framework and the glass stair treads to each project’s specifications. Therefore, we can accommodate any shape and size, including spiral, curved, S-shaped staircases, or more.

Architects and designers can specify any level of transparency or translucency to suit their project’s aesthetic and practical needs without sacrificing light penetration. We can also create risers and landings to finish the look. Circle Redmont also offers digital printing, silk screening, or colored interlayers for a truly unique final product. Furthermore, our glass is manufactured for specified load capacities for optimal safety. Our panels can span up to 56” with only 2-sided support. Mounting hardware is cleverly hidden. Specially designed support brackets seem to “vanish” to create the illusion of a “floating” staircase. Finally, we can incorporate LED lighting into our glass stair treads for an even greater effect. Ceramic traction frits can also be specified for added slip resistance.

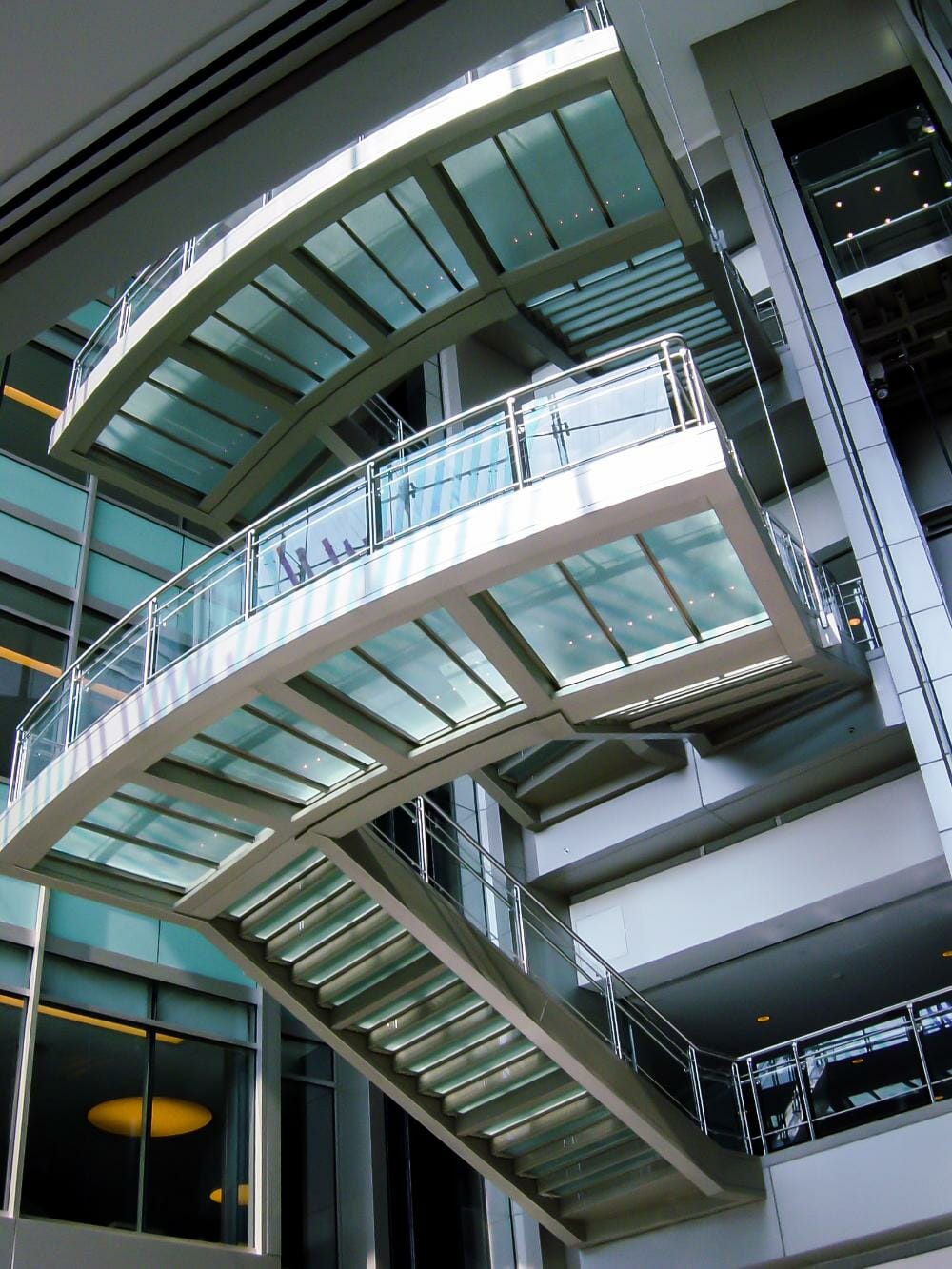

Create a glass staircase showpiece with clean lines and plenty of natural light, and pair your glass stairs with adjacent glass walking surfaces such as bridges or walkways for even more impact. Combining glass stair treads with a structural glass walkway creates a sophisticated, high-end design at a price that is surprisingly cost-effective.

With more than 50 years of glass fabrication experience, our products and processes undergo thorough testing, so you can confidently specify 91R glass flooring panels. Architects and designers have used the 91R system for flooring, skylights, deck lights, stairs, landings, sky bridges, and other creative glass applications. Interlayers bond together the layers of glass in the planks, ensuring their structural integrity. Our glass panels are engineered and fabricated to a typical live load capacity of 100 lbs. per square foot on a 4′ span.

Please read all directions, construction details, and provided drawings before installing your 91R™ structural glass floor. Wear gloves when installing the aluminum framework, which can have sharp edges, and take care not to drop the framework pieces during assembly. Refer often to the installation drawings to ensure you match the glass floor dimensions to the floor opening dimensions. Staircases are difficult to install correctly, and adding glass creates an additional element of difficulty. We highly recommend using an experienced contractor to install 91R™ stairs.
